混料機是由一個水平旋轉的容器和旋轉的立式攪拌葉片等組成，成型料攪拌時，容器向左轉，葉片向右轉，由于逆流的作用，成型料各顆粒間運動方向交叉，互相接觸的機會增多，逆流混料機對料的擠壓力小，發熱量低，攪拌效率高，混料較為均勻。
    配用功率：11kw-6級電機
    減速機型號：ZQ-400
    速度比：20:49
    外形尺寸：（長*寬*高）：2500*1240*1270
    混合較均勻且松散，極少有死角料，出料方便，容易清洗，生產效率高，設備不易磨損�；炝蠙C(jī)適合粉狀樹脂成型料的混合，也可以用于液體樹脂成型料的混合。

Mixer machine is composed of a horizontal rotating container and vertical mixing blades, etc, molding compound mixing, the container to the left, blade to the right, as a result of the action of reverse flow, molding compound direction intersecting among different particles, increase in the number of opportunities to contact with each other, countercurrent mixer for material extrusion pressure is small, low calorific value, high mixing efficiency, more homogeneous mixing.
With power: 11 kw - level 6 motors
Reduction model number: ZQ - 400
Faster than: then
Overall dimensions (length * width * height) : 2500 * 1240 * 1270
Are uniformly mixed and loose, very few dead Angle expected, the discharge is convenient, easy to clean, high production efficiency, equipment is not easy to wear.Mixer is suitable for the mixed powdered resin molding compound, can also be used in a mixture of liquid resin molding compound.

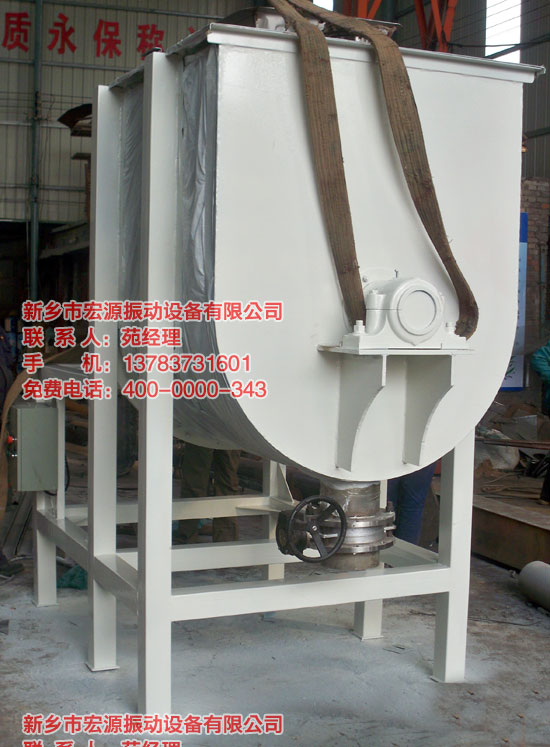

待發貨的混料機-攪拌機
Ready to shipping
